Triaxial Testing Equipment

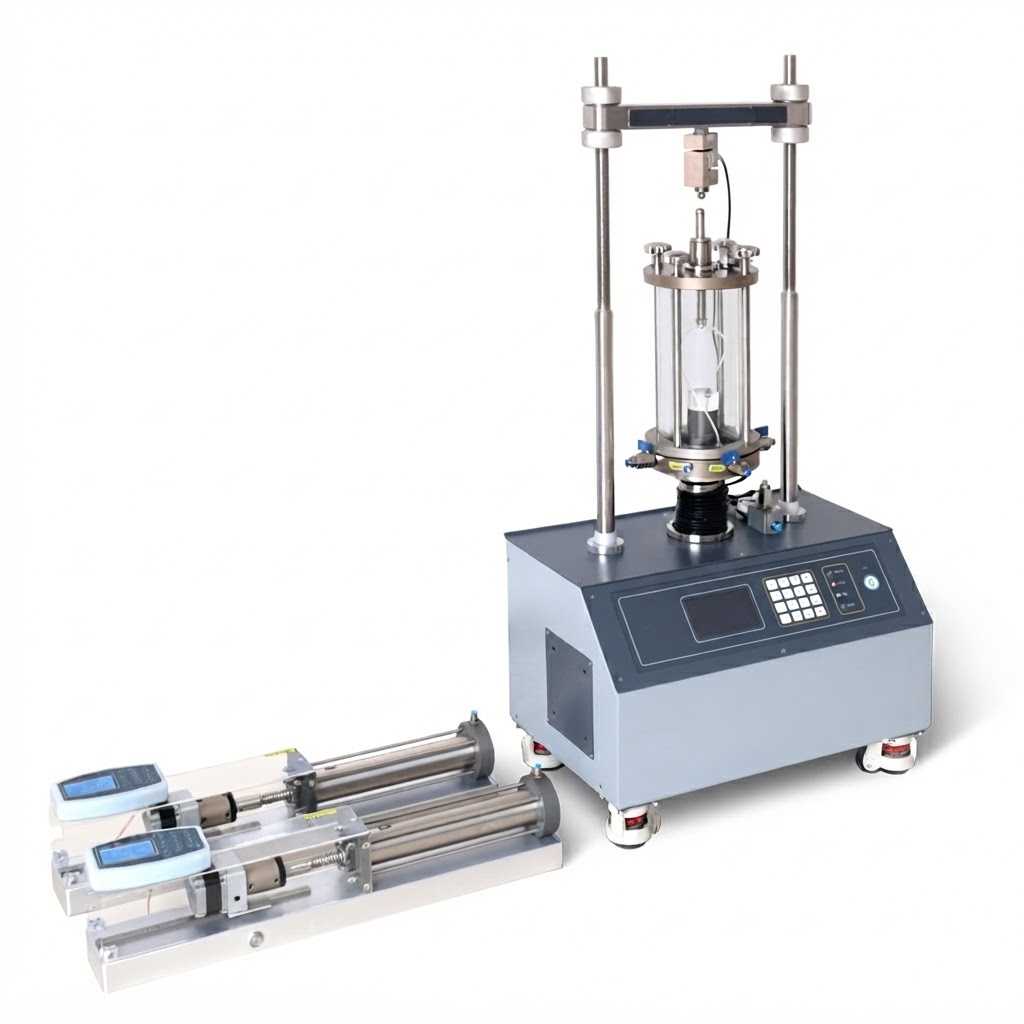

Complete triaxial testing system with cell, pressure control modules and digital datalogger for shear strength testing of soils.
Overview
The Triaxial Testing Equipment determines the shear strength of soil specimens under controlled confining pressure per ASTM D4767 / BS 1377. The transparent triaxial cell is mounted on a base unit with digital display and keypad, flanked by two pressure control modules that maintain cell and back pressure, with a datalogger recording load and deformation throughout the test.
Technical Specifications
- Standard
- ASTM D4767 / BS 1377
- Cell
- Transparent cylindrical triaxial cell with reaction frame
- Pressure Control
- Dual pressure modules with digital readouts
- Data Acquisition
- Digital display, keypad and datalogger
Applications
- Effective and total stress shear strength testing
- Consolidated drained / undrained triaxial tests
- Research and commercial geotechnical laboratories
