Material & Geotechnical Testing Equipment

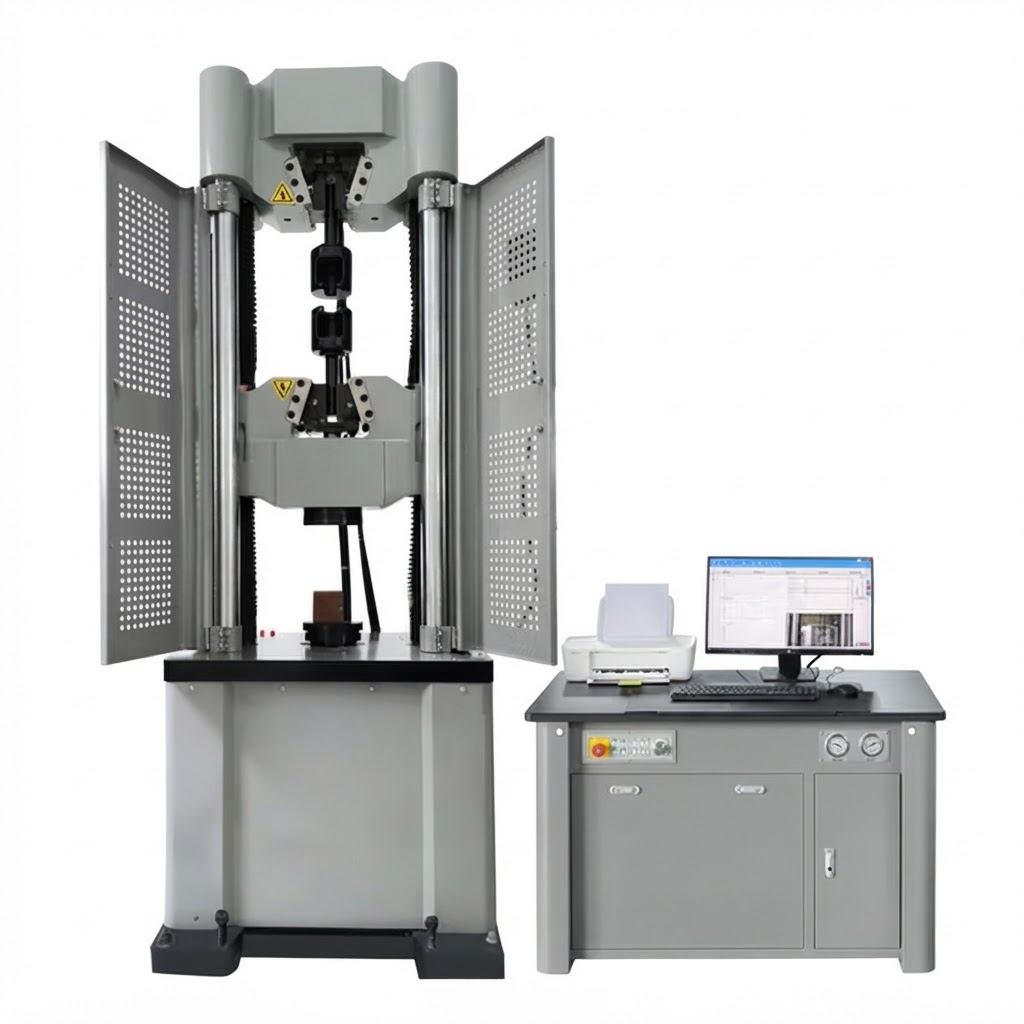

Universal Testing Machine 1000 kN
Floor-standing 1000 kN universal testing machine with dual-column load frame and full computerized control, monitoring and printing station.
Manufacturer: Kason (Jinan Kason Testing Equipment Co., Ltd.)
Overview
A floor-standing 1000 kN universal testing machine engineered for tension, compression and bend testing of construction materials. The dual-column load frame with chrome-finished hydraulic columns houses the testing area behind perforated safety doors, while the accompanying desk-style console provides complete computerized test control with monitor, keyboard and printer, plus an emergency-stop button and pressure control dials for safe, precise operation.
Technical Specifications
- Capacity
- 1000 kN
- Test Type
- Tension, compression & bending
- Control
- Computerized console with monitor and printer
- Safety
- Emergency stop button, perforated safety doors
Applications
- Tension & compression testing of steel and construction materials
- Bend testing
- Laboratory quality control programmes
