Ground Penetrating Radar

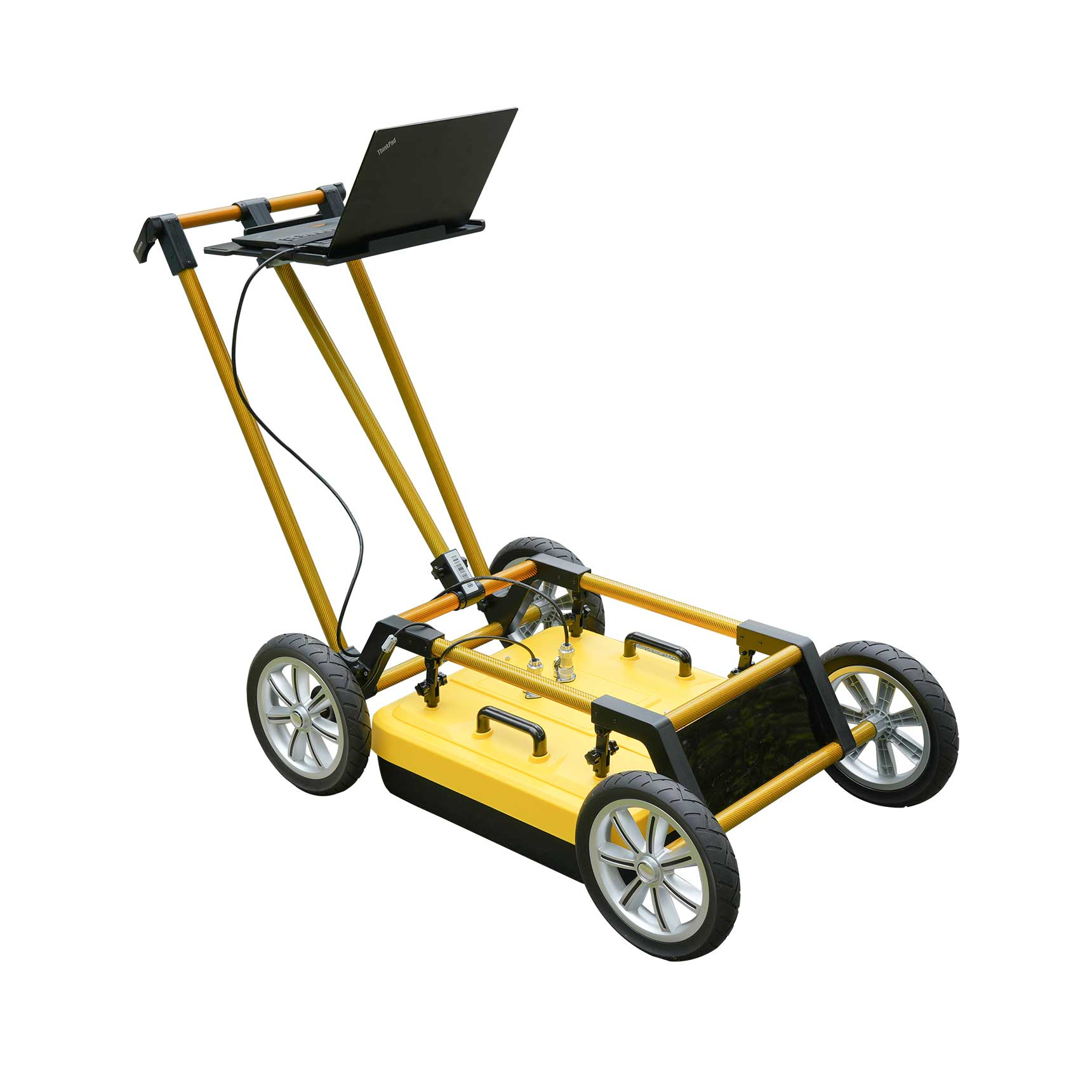

Wheeled ground penetrating radar (GPR) system with cart-mounted antenna and laptop acquisition for subsurface imaging of utilities, voids and strata.
Overview
The Ground Penetrating Radar images subsurface features non-intrusively by transmitting radar pulses into the ground and recording the reflected signal. The antenna unit is mounted on a wheeled survey cart for smooth line acquisition, with real-time data collection and review on the connected laptop for locating utilities, voids, rebar and geological interfaces beneath concrete or soil.
Technical Specifications
- Configuration
- Cart-mounted antenna unit with four-wheel survey frame
- Acquisition
- Connected laptop with radar acquisition software
- Output
- Real-time subsurface profile imaging
Applications
- Utility and pipeline mapping
- Void and sinkhole detection
- Concrete scanning and pavement investigation
