What is the primary use of this CBR machine?

This machine is designed for testing the strength of pavement subgrade and base course materials using the California Bearing Ratio method.

Does it include the proving ring and plunger?

Yes, the CBR testing machine is provided with the standard proving ring and plunger required for load-bearing capacity tests.

Where is this equipment manufactured?

This equipment is proudly manufactured by GGC in Pakistan to meet the specific requirements of local engineering and construction laboratories.

Home /Products /GGC Local Manufacturing

GGC Local Manufacturing

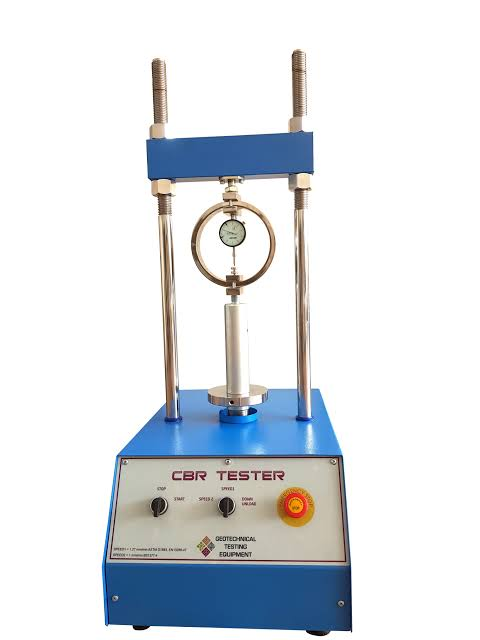

CBR Testing Machine

Name: CBR Testing Machine
Brand: Gohar Global Cooperation

CBR testing machine with proving ring and plunger for pavement subgrade and base course strength testing, manufactured by GGC.

Overview

The CBR Tester determines the California Bearing Ratio of soils, aggregates and stabilized materials for pavement design. A plunger penetrates the specimen at the standard rate through a proving ring while penetration load is read from the dial gauge, at both test speeds marked on the control panel (1.27 mm/min to ASTM D1883 / EN 13286-47 and 1.0 mm/min to BS 1377-4). GGC manufactures the complete machine in our workshop with start/stop and emergency stop controls, calibrated proving ring and adjustable crosshead.
